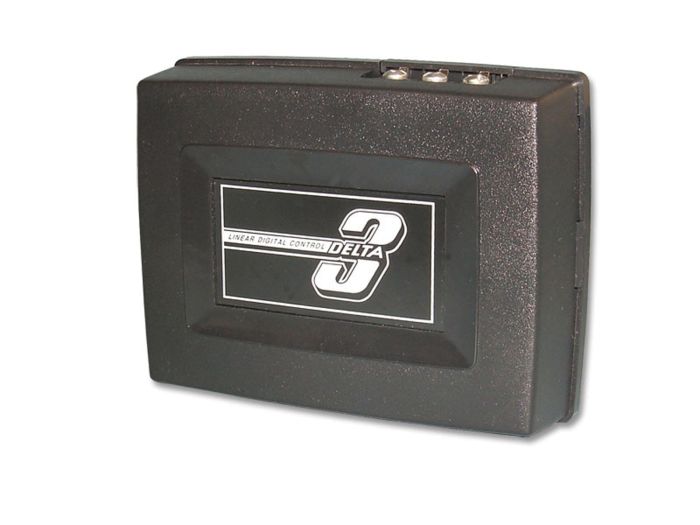

Linear DR Delta 3 Single Channel Receiver DNR00001

Be the first to review this product
In stock
SKU
DR

Quick Overview

  • Compatible with 310 MHz Delta-3 receivers and remotes
  • Includes: Receiver, Wire lead antenna, Mounting bracket
  • Dimensions: 5.5" W x 4" H x 1.25" D
  • Genuine Linear part
$40.11
  • Buy 10 for $38.91 each and save 3%
  • Buy 25 for $37.70 each and save 6%
  • Buy 50 for $36.10 each and save 10%
Add to Compare

Secured and trusted checkout with

Related Products
Check items to add to the cart or

The DR is a single-channel, three-terminal Delta-3 Receiver that activates one device.

Compatible with 310 MHz Delta-3 receivers and remotes

Includes:
Receiver
Wire lead antenna
Mounting bracket

Dimensions: 5.5" W x 4" H x 1.25" D

0
Rating:
0% of 100
0 Reviews
Write Your Own Review
You're reviewing:Linear DR Delta 3 Single Channel Receiver DNR00001
Your Rating
Customer Questions
How to determine is existing Delta 3 Receiver is bad?
To check if the receiver is bad you can jump the two terminals the receiver connects to on the back of the garage door opener. If that operates the door their receiver is most likely bad. Also, if you have multiple remotes and they all went bad at the...
Read More
Did you find what you were looking for?
System Specifications: Linear Delta-3
  • Frequency: 310 MHz
  • Technology: 8 DIP Switches (On/Off positions)
  • Compatibility Rule: Match all 8 switches between transmitter and receiver.
BrandModel #ButtonsTypeDescription
Linear (OEM) Transmitters
LinearDT / DNT00002A1VisorStandard single-channel visor remote.
LinearDT-2A2VisorTwo-button remote for controlling two doors.
LinearDT-4B4VisorFour-button remote for multi-door complexes.
LinearMini-T / DNT000261KeychainCompact "Ladybug" style keychain remote.
LinearDTWP1Wall MountWireless wall-mounted stationary button.
LinearDTKPKeypadKeypadExterior wireless pin-code entry.
Moore-O-Matic (Cross-Compatible)
Moore-O-MaticDT2 / DT41 / 4VisorOlder branded versions of the Delta-3 protocol.
Compatible Aftermarket Brands
SkyLink310-L / 100-L1Visor/KeychainUniversal replacements set to 310MHz mode.
Clicker (Chamberlain)KLIK3U / KLIK5U2UniversalSupports Linear 8-DIP 310MHz via setup.
North ShoreNS7-3101KeychainThird-party cost-effective alternative.
Receivers

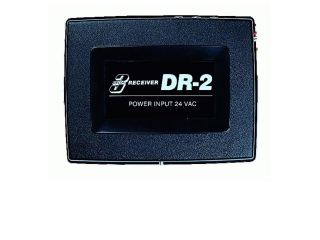

LinearDR3 / DR124V HardwiredThe core receiver used in most motor heads.

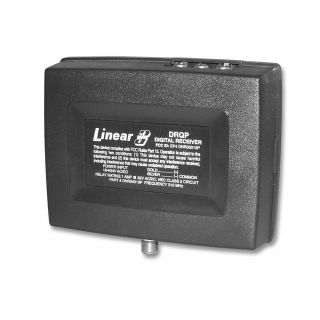

LinearDRQ1110V Plug-inExternal receiver that plugs into a wall outlet.
LinearDRA / DRA-41 / 4CommercialHigh-range receivers for gates and commercial doors.
