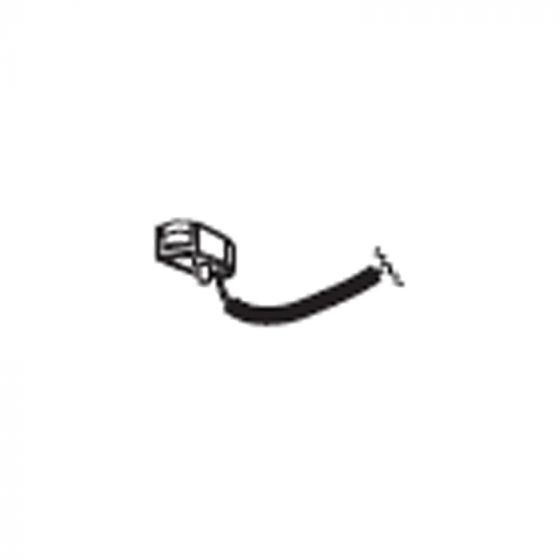

The Marantec 104083 Reference Switch Kit is a genuine OEM replacement sensor assembly for select Marantec garage door openers that use a magnetic reference system to establish travel limits. This reference switch detects the trolley magnet passing the head unit to set a consistent “home” position for the control board, helping the operator accurately learn and maintain open and close positions. Replacing a worn or failed reference switch can resolve issues such as doors stopping short, drifting limits, or repeated reprogramming prompts. It is intended for residential Marantec operators that utilize a magnetic reference/teach system and is designed to restore reliable travel calibration without altering the opener’s drive or safety reversing system.
This kit typically includes the reference sensor with a factory connector and mounting hardware, allowing a direct plug-in to the opener’s low-voltage control harness. Installation is straightforward for experienced homeowners or technicians: disconnect power, access the head unit, swap the sensor, route the harness, and then run the opener’s travel/force programming as outlined in the Marantec owner’s manual. For compatibility, match part number 104083 with your opener’s parts list or manual; it is commonly associated with Marantec models that use a magnet-triggered reference switch on the rail. Always disconnect power before servicing and re-perform limit setup after replacement to ensure proper operation. This OEM Marantec replacement part is an ideal solution for maintaining accurate travel referencing on compatible Marantec garage door openers.
