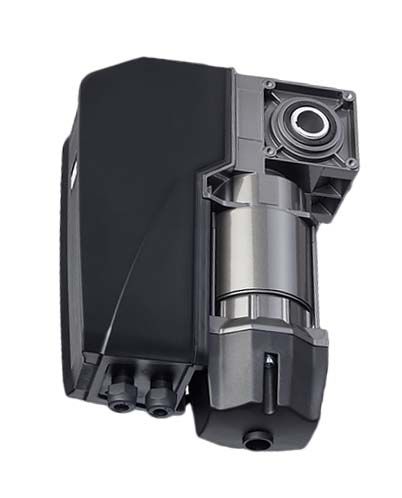

With the new VTA Commercial Garage Door Drive from Marantec, garage door dealers can now provide their customers with a DC-powered opener that is safe, functional, and easy-to-use.
The VTA series offers consistently safe and reliable door operation across multiple industries. Thanks to its DC technology, you can quickly and easily put the VTA to work anywhere around the world without needing to perform any additional modifications.
As an industry leader in commercial door drives with DC technology, our top priority is always the safety of our products and our customers. The VTA is a UL 325 commercial listed door drive that comes with the convenience of an optional battery back-up system in the case of a power failure or emergency.
 |  |  |
| VTA 14-61 | VTA 11-62 | VTA 11-72 |
Weight: 17.6 lbs Dimensions: 4.1 x 10.1 x 11.1 (inches) Drive Shaft Type: Hollow or Solid Output Torque: 25 newton power Static Holding Torque: 897 lbs Shaft Diameter: 1" (inch) Horsepower: 1/2 HP Motor RPM: 24 min-1 Max Door Size: 200 sqft Max Drum Size: 6.3 in Max Cycles Per Hour: 20 Max Cycles Per Day: 450 Emergency Operation: Chain Hoist or Quick Release | Weight: 26.7 lbs Dimensions: 4.1 x 10.9 x 14.1 (in) Drive Shaft Type: Solid Output Torque: 35 newton power Static Holding Torque: 1346 lbs Shaft Diameter: 1" (inch) Horsepower: 1/2 HP Motor RPM: 24 min-1 Max Door Size: 270 sqft Max Drum Size: 8.9 in Max Cycles Per Hour: 20 Max Cycles Per Day: 450 Emergency Operation: Chain Hoist or Quick Release | Weight: 26.7 lbs Dimensions: 4.1 x 10.9 x 14.1 (in) Drive Shaft Type: Solid Output Torque: 45 newton power Static Holding Torque: 1346 lbs Shaft Diameter: 1" or 1.25" (in) Horsepower: 1/2 HP Motor RPM: 19 min-1 Max Door Size: 310 sqft Max Drum Size: 8.9 in Max Cycles Per Hour: 20 Max Cycles Per Day: 450 Emergency Operation: Chain Hoist or Quick Release |
