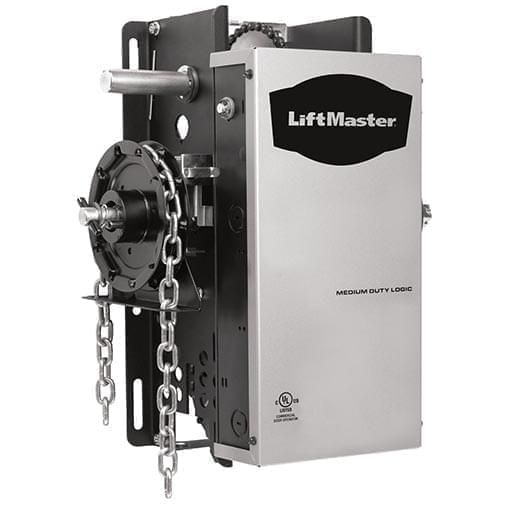

The Model MH door operator is designed for use on high or vertical lift sectional doors or small rolling doors and grilles. Maximum recommended duty cycle: 12 cycles per hour.
Standard Features:
- UL325-2010 Monitored Entrapment Capability (provides primary monitored entrapment protection through monitored photo sensors: either CPS-U or CPS-UN4, or a 4-wire monitored edge using the CPS-EI interface)
- UL-Listed and UL-Labeled to insure compliance to local codes and approval at final inspection
- Solid-state Medium-Duty Logic circuit board
- Powerful 1/2 HP, 115V single-phase motor with instant reverse, capacitor start, and overload protection
- Easy emergency manual operation using a floor level disconnect and an electrically interlocked chain hoist mechanism
- 24V NEC Class 2
- Wiring is factory present to C2 mode
- First stage heavy-duty 4L V-belt; second and third stages #48 chain
- Heavy-duty oil-filled bushings
- Adjustable friction clutch helps protect against damage to the door and operator
- Heavy-duty solenoid-actuated brake
- 3-button station for open/close/stop functionality
- 315 MHz radio receiver is integral to the Medium-Duty Logic board
- NEMA 1 type electrical box
- 2-year warranty
MH5011UR or MH5011-R for right mount and MH5011UL or MH5011-L for left mount
