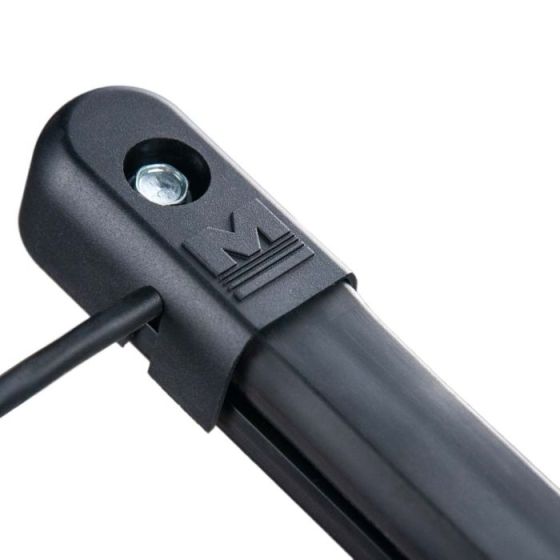

Miller Edge’s MG110 sensing edge is a compact, high‑performance safety device designed to protect draw‑in posts, pockets and pivot points on automated gates and doors. Its slim profile uses touch‑sensitive technology to stop or reverse a moving gate the instant it encounters an obstruction, helping to prevent damage and injuries. Engineered for easy installation, the slide‑in design works with the included rigid PVC mounting channel, molded nylon end caps and self‑drilling screws to deliver a clean, finished look and reliable performance. Available in monitored (10 kΩ resistive) or non‑monitored configurations, the MG110 meets the ANSI/UL 325 standard for gate operators, giving installers and property owners peace of mind.
Built from flexible PVC with a patented Alumaglas® contact element, the MG110 withstands harsh conditions and resists wear. It is offered in 4‑ or 5‑ft lengths (±0.25 in), with custom sizes available, and operates across a wide temperature range from –30 °F to 155 °F. The edge’s nominal sensitivity (4–7 lbf) and 24 V AC/DC electrical maximum provide consistent, responsive operation, while the field‑selectable wire outlet and ability to mount vertically or horizontally make it adaptable to many gate and barrier arm installations. Low maintenance and tested for long‑term durability, the MG110 sensing edge is an ideal choice for barrier arms, slide gate draw‑in posts, pockets and pivot points in residential or commercial environments.
- Small-profile sensing edge protects draw‑in posts, pockets and pivot points
- Touch‑sensitive technology stops or reverses gate upon contact
- Available as monitored (10 kΩ) or non‑monitored; ANSI/UL 325 compliant
- Slide‑in design installs easily with included PVC mounting channel and end caps
- Mounts vertically or horizontally; field-selectable wire outlet
- Constructed from flexible PVC with a durable Alumaglas® contact element
- Offered in 4‑ or 5‑ft kits with self‑drilling screws and molded end caps
- Edge Length: 4 or 5 ft (±0.25 in); custom lengths available
- Material: Flexible PVC; mounting channel is rigid PVC
- Lead Wire: SJTO, 22 ga; typical length 2–10 ft
- Contact Element: Patented Alumaglas®
- Electrical Rating: 24 V AC/DC max, 0.5 A
- Sensitivity: Nominal 4–7 lbf
- Temperature Range: –30 °F to 155 °F (–34 °C to 68 °C)
- Compliance: UL 325 recognized component; monitored options (T1/T2) or non‑monitored
